Calculating the aggregate working load limit of your trailer straps ensures your flatbed cargo meets federal safety laws before driving away.
Understanding these tie-down rules protects your cargo from highway accidents and prevents expensive roadside inspection fines.
Federal motor carrier safety laws state that the aggregate working load limit across all securing straps must equal at least 50% of your total cargo weight.
Highway inspectors regularly issue out-of-service orders to truck drivers because of broken straps, missing load tags, or incorrect math.
Cargo securement violations rank fourth among the top vehicle out-of-service categories during annual roadside inspections, producing thousands of citations every year.
Most of those violations trace back to three basic failures: using the wrong tie-down count, using damaged equipment, or failing to run the math before departure.
Learning the exact math behind the aggregate working load limit protects your business from unexpected transit delays and safety violations.
Understanding Individual Ratings vs. Total System Limits
Every strap, chain, and binder carries a specific strength rating stamped directly onto its metal hook or fabric tag.
Working load limit represents the maximum safe weight a single piece of equipment can hold during normal travel. Equipment manufacturers calculate this limit at one-third of the device’s total breaking strength.
You must always use the official working load limit for your safety math rather than the total breaking strength.
Adding up every individual rating gives you the total aggregate working load limit for your entire trailer setup. Two types of numbers matter when reviewing your securement setup.
The first number is the rating of a single strap, chain, or binder. The second number is the combined total of every approved device holding down the cargo.
When moving heavy freight, your total hardware strength must match or exceed half the weight of your cargo.
Damaged tags, frayed webbing, or rusted chains drop an individual rating straight down to zero under federal rules.
That means an unreadable label contributes nothing toward your legally required total, even if the physical chain looks brand new.
Step-by-Step Weight Ratio Math
Running the numbers before leaving the loading dock takes less than five minutes and saves hours of potential inspection delays.
Confirm the Exact Weight
Check official scale tickets to verify true cargo weight rather than relying on estimated cargo sheets. Underestimating your cargo weight by even five hundred pounds results in an illegal tie-down setup.
Scale tickets from previous shipments should never replace actual weight tickets for the specific load sitting on your trailer.
Inspect Every Tie-down Tag
Examine every strap, chain, and winch binder for clear manufacturer strength ratings. Federal inspectors treat any unrated or damaged equipment as if it holds zero strength toward your total aggregate working load limit.
Checking every device before loading prevents drivers from relying on unrated hardware.
Total Your Hardware Ratings
Add together the individual working load limits of every approved tie-down used on the trailer. Four heavy-duty chains rated at 4,700 pounds each deliver a combined rating of 18,800 pounds.
Apply the 50% Weight Test
Multiply your total cargo weight by 0.5 to find your minimum legal equipment requirement. Transporting a 40,000-pound steel coil demands a total hardware rating of at least 20,000 pounds.
Using four 4,700-pound chains leaves you at 18,800 pounds, which fails the test and triggers an instant violation. Adding a fifth chain pushes your rating to 23,500 pounds, keeping your load completely legal.
Crucial Equipment Rules to Remember
Mastering the basic math formula is only half the battle when securing heavy flatbed cargo. Following specialized equipment rules keeps your trailer setup fully compliant under real-world highway conditions.
Tie-down Angle Reductions
Running a strap over the top of your cargo to attach on the same side cuts its rated capacity in half.
A strap rated for 3,333 pounds only contributes 1,667 pounds toward your total aggregate working load limit when used in an over-the-top loop configuration.
Missing this halving rule is one of the most common mathematical errors flatbed drivers make on the dock.
The Two-Rule Standard
Federal laws enforce both a total weight rule and a minimum piece count rule based on cargo length.
Short loads under five feet need one tie-down, while longer items require additional straps every ten feet. Meeting the length requirement alone is not enough if your hardware strength falls short of the 50% weight rule.
Both rules must be satisfied at the exact same time.
Mandatory 50-Mile Checkpoints
Heavy loads settle onto trailer beds during the first few miles of highway travel.
Federal safety standards require drivers to stop and check strap tension within the first 50 miles, repeating checks every 150 miles afterward.
Dynamic forces during emergency stops can reach 0.8g forward, making re-inspections essential for maintaining securement integrity.

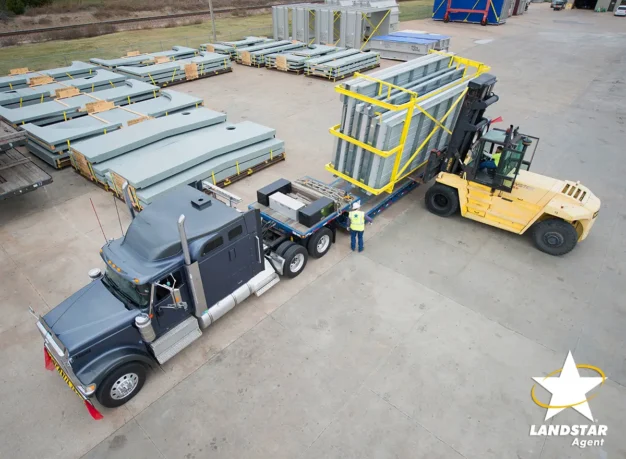

Move Heavy Freight with Aggregate Working Load Limit Experts at Jansson LLC
Calculating equipment limits accurately protects your business reputation and keeps your deliveries moving on schedule.
Shippers suffer direct financial consequences when carriers get placed out of service, regardless of who made the paperwork mistake.
Partnering with top heavy haul shipping companies guarantees experienced drivers manage your cargo securement with complete precision.
Jansson LLC functions as an authorized Landstar freight agent, connecting shippers with vetted flatbed and heavy haul specialists across the nation.
Their experienced carrier network understands federal cargo securement laws and runs pre-departure protocols before turning the key.
Avoid costly inspection delays on your next shipment! Contact Jansson LLC today to secure reliable heavy haul shipping support for all your specialized flatbed freight.
